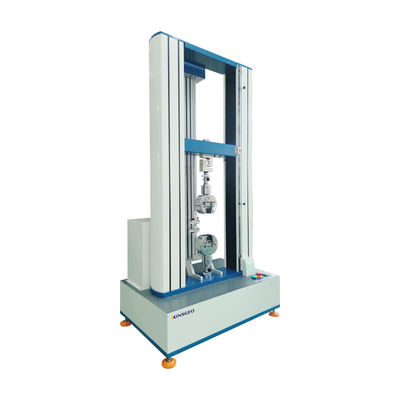

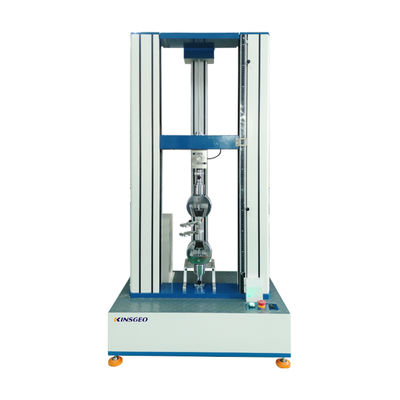

2000N Double-column Universal Testing Machine with AC220V 50Hz Power Supply and 1 Year Warranty for 120mm Test Space

Sertifika
Çin GUANGDONG KEJIAN INSTRUMENT CO.,LTD Sertifikalar
Çin GUANGDONG KEJIAN INSTRUMENT CO.,LTD Sertifikalar
Kejian Universal Test Makinesi kalitesi en iyi, satış sonrası hizmet de mükemmeldir.

—— Oscar Vargas

Kağıt Test Makinesi en iyi üründen biridir.

—— Kritsana Praikongkadhrama

Ben sohbet şimdi

2000N Double-column Universal Testing Machine with AC220V 50Hz Power Supply and 1 Year Warranty for 120mm Test Space

2000N Double-column Universal Testing Machine with AC220V 50Hz Power Supply and 1 Year Warranty for 120mm Test Space
2000N Double-column Universal Testing Machine with AC220V 50Hz Power Supply and 1 Year Warranty for 120mm Test Space 2000N Double-column Universal Testing Machine with AC220V 50Hz Power Supply and 1 Year Warranty for 120mm Test Space

Büyük resim :  2000N Double-column Universal Testing Machine with AC220V 50Hz Power Supply and 1 Year Warranty for 120mm Test Space

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: KINSGEO
Sertifika: CE/ISO
Model numarası: KJ-1066B
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: USD/4800/SET
Teslim süresi: 15 iş günü
Ödeme koşulları: T/T, D/P
Yetenek temini: 60 takım/ay
Detaylı ürün tanımı
Güç: Elektronik,Hidrolik,AC220V 50Hz Kullanım: Evrensel test makinesi
Ağırlık: 216kg Ürün adı: 10T Bilgisayar Servo Üniversal Çekme Test Cihazı Fiyatı
Güç Kaynağı: Özelleştirilebilir, 220v 50Hz Uygulama: evrensel test cihazı
Standart: Bs.en.astm Motor: Panasonic Servo Motor
Garanti: 1 yıl Kesinlik: +/-% 0.5
İsim: Evrensel test makinesi Kapasite: 200
Felç: 650mm (kelepçe hariç) Çözünürlük: 1/250
Test alanı: 120 mmMAKS Doğruluğu ölçme: Değer ±%1/ Değer±%0,5
Etkili ölçüm aralığı: %0,2~%100(1 derece)/%0,4~%100(0,5 derece) Operasyon: Bilgisayar Windows İşlemi
Vurgulamak:

AC220V 50Hz Universal Testing Machine

,

1 Year Warranty Universal Testing Machine

,

120mm Test Space Universal Testing Machine

2000N Double-column Universal Testing Machine
Product Description
This machine, also known as a materials testing machine, is designed for testing tensile strength, compression, bending, peel resistance, shearing force, peeling force, modulus of elasticity, and elongation of various materials. It is suitable for testing components and finished products across multiple industries including metal, plastic, rubber, textiles, synthetic chemicals, wire and cable, leather, packaging, tape, film, and solar cells.
Key Features
  • Constructed with paint-coated aluminum blanking plate for durability
  • High-accuracy, low-resistance dual ball screw and oriented pole system for improved loading efficiency and structural rigidity
  • Panasonic servo motor ensures high efficiency, steady transmission, and low noise with speed accuracy controlled within 0.5%
  • Business computer as main control unit with specialized testing software for comprehensive parameter testing, data collection & analysis, result display, and printing output
Design Standards
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D638, ASTM D412
Technical Specifications
Model KJ-1066B
Range of speed 50-500mm/min
Motor AV Servo Motor
Capacity choice 2000KG
Resolution 1/150,000
Effective testing space 400mm MAX
Accuracy ±0.5%
Operation method Windows XP, Win7 operation, computer control
Accessories Computer, printer, system operation manual
Optional accessories Customized clamps by appointment, force sensors, printer, and operation manual
Weight 400KG
Dimension (W×D×H)80×50×150㎝
Power 1PH, AC220V, 50/60Hz
Stroke protection Upper and lower protection, prevent over preset
Force protection System setting
Emergency stop device Handling emergencies
