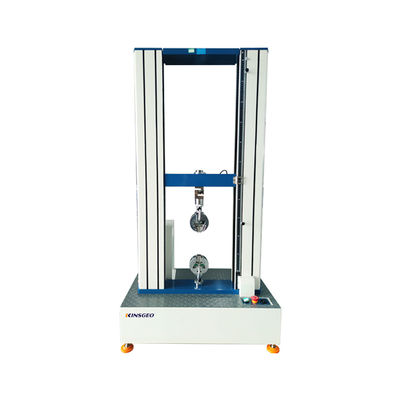

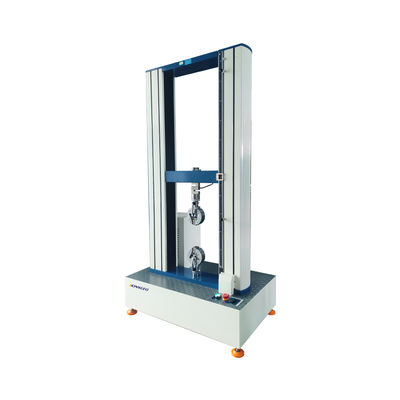

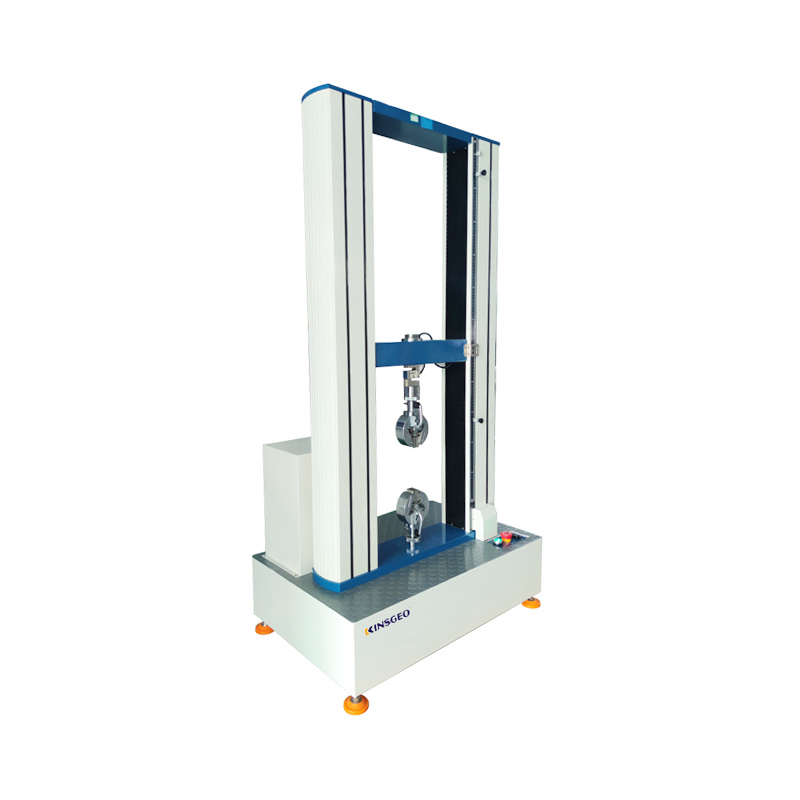

Double-column Universal Bending Testing Machine

Büyük resim : Double-column Universal Bending Testing Machine

Ürün ayrıntıları:

Menşe yeri:	Dongguan, Çin
Marka adı:	KEJIAN
Sertifika:	ISO,CE and etc.
Model numarası:	KJ-1066A

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Birim
Fiyat:	Negotiate
Ambalaj bilgileri:	Reçine elyafı ve PP film ile korunan her set, daha sonra profesyonel ihracata konur Güçlü kontrplak
Teslim süresi:	Stokta, siparişi onayladıktan sonra 3-7 iş günü
Ödeme koşulları:	T/T,Western Union,MoneyGram,L/C,T/T
Yetenek temini:	5000 set/yıl

İletişim

Detaylı ürün tanımı

Motor:	Panasonic Servo Motor	Test hızı:	0,1-500 mm/dak seçilebilir
Kesinlik:	±% 0.5	Kapasite:	5, 10, 20KN İsteğe bağlı
Etkili test genişliği:	390mm	Eksifikasyon:	kauçuk, plastik, naylon, deri vb.
Tasarım Standardı:	ASTM D903, GB/T16491 ve diğerleri

Double-column Universal Bending Testing Machine

Product Introduction

Our dual column universal tensile testing machine is designed for evaluating the strength of various materials including plastic films, composite materials, soft packaging, rubber, paper fiber, and more. It performs comprehensive tests for tension, compression, bending, shearing, tearing, peeling, puncture, and three-point bending conditions.

Widely used in textile manufacturing, furniture production, wire mesh, adhesive tapes, film materials, medical equipment protective films, and related industries.

Key Features

High-strength steel die machine body with aluminum force columns
Premium automotive-grade paint finish for durability and aesthetics
Environmentally friendly, non-toxic paint that is aging-resistant
Precision servo motor for accurate operation
High-precision sensor for reliable force measurement
Interchangeable clamps for diverse testing applications

Technical Specifications

Items	Specifications
Capacity	100, 200, 500, 1000, 2000, 3000, 5000, 10000kg
Unit Switchover	G, KG, N, LB
Display Device	LCD or PC
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1000mm (including fixture)
Test Speed	0.1-500mm/min (adjustable)
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	AC220V, 50HZ or customized
Weight	Approx. 500kg
Accessories	Tensile clamp, computer system, English software CD, operation CD, user manual

Application Industries

Our universal tensile strength testing machine serves diverse industries including rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, wire and cables, packaging, medical equipment, research laboratories, and technical supervision departments.

Service & Support

Onsite Services:

Device installation and operation testing
Technical training and equipment calibration
Daily maintenance guidance

Additional Support:

Free technical training for visiting factories
24-hour online support
Free software upgrades
Comprehensive documentation including product instructions, operation videos, and test reports

Customer Commitment

We guarantee a response within 48 hours and solution provision within 3 working days for any testing process issues. We provide operation videos, English manuals, and video conference support.

Specialized manufacturer for mechanical properties measuring equipment. Custom clamps available to precisely fit your testing requirements!
