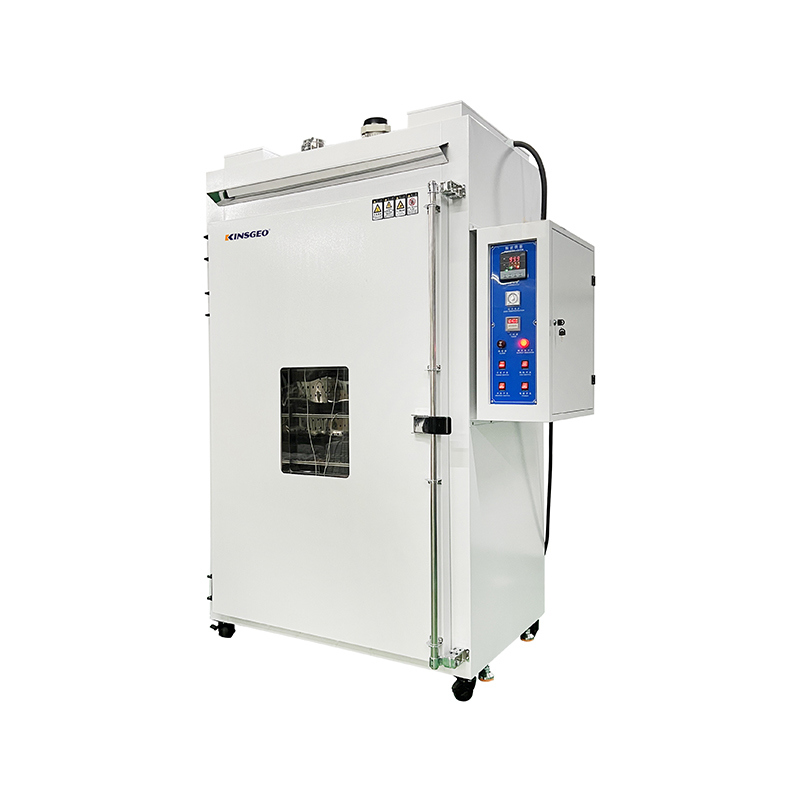

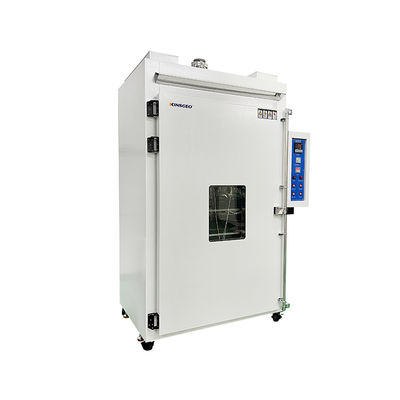

Customized Laboratory Precision Curing Oven

Büyük resim : Customized Laboratory Precision Curing Oven

Ürün ayrıntıları:

Menşe yeri:	Dongguan Çin
Marka adı:	KINSGEO
Sertifika:	CE,ISO
Model numarası:	KJ-2010

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Negotiate
Ambalaj bilgileri:	Reçine elyafı ve PP film ile korunan her set, daha sonra Profesyonel Kontrplak Güçlü tahta sandık iç
Teslim süresi:	stokta, sipariş onaylandıktan sonra 5-10 iş günü
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 100 Set

İletişim

Detaylı ürün tanımı

Ürün adı:	Endüstriyel fırın	Sıcaklık aralığı:	200 ℃, 300 ℃, 400 ℃, 500 ℃
Isıtma:	Sıcak hava	Güç:	220V veya 380V
Garanti:	1 yıl

72L Desktop Environmental Industrial Aging Drying Oven Test Chambers

Product Introduction:

Inner size: 90×60×120cm(W×D×H)(Customized),
Outside size: 110*75*186cm (W×D×H)
Power:220/380V heating power:about KW

1. The controller is located in the right side of the machine,opened in the centre with two doors, luxury handle is stainless steel,more important,the machine has the anti-explosion door holder.
2. The material of Inner is 304 mirror surface stainless steel. Lumen of the machine is clean and smooth,it’s easy to clean and do not keep residue, corrosion resistance function is very good.All the inner material is low- infectant material.Inner machine all has the non-trace argon arc welding
3. The material of Outside is SECC armor plate,thickness of plating is 1.2mm baking finish with Fine powder.
Heat preservation is imported high density glass rock wool, thermal insulation is very good,can resist the 150℃.

Temperature control system

1. Temperature controller is PID microcomputer auto-calculation,showing by PV/SV,Set the temperature you need,control the accuracy by PID parameter.
2. Current controller is SSR,contactless Relay,keep the voltaic high stability.
3 .Heating material is honeycomb stainless steel heating tube,and pollution-free with long using life.

4. Temperature range:RT~400℃(Customise),normal temperature RT~350℃(Customise),.
5. Accuracy:contral accuracy±0.5℃,distribution temperature ±2.0℃(no-load)

Air supply system

Moter long axis thermostability is imported from Taiwan,rate of work is 1/2HP50Hz
The fan is leafiness turbine type,strong strength,has adjustable river diversion wind-plate Make the wind path smoothly.
Heating speed:RT~100℃ about 10minutes.

Accessories

superhigh temperature protection, non fuse-switch, porcelain fuse,motor overcurrent protection
Timer: 9999s~9999hour(can set by H.M.S)
Timer when the temperature is ok,outage when the time is ok,stop heating and alarm.

Specification:

Interior size (W×H×D)	Exterior size (W×H×D)	Temperature range	Heating time	Accuracy	Uniformity	Power		Partition (net bar shape)
35×35×35cm	53×65×55cm	200℃	RT-100℃ About 10min	±1℃	±5	220V or 380V	1.5kW	2
45×40×40cm	66×98×53cm	A:200℃ B:300℃ C:400℃ D:500℃		±0.5℃	±1		3.5kW	2
50×60×50cm	75×121×68cm			±0.5℃	±1		4.5kW	2
60×90×50cm	85×160×68cm			±0.5℃	±1		5.5kW	2
80×100×60cm	110×168×78cm			±0.5℃	±1		6.5kW	Customized
90×120×60cm	120×180*78cm			±0.5℃	±2		7kW
140×120×60cm	175×192×78cm			±1℃	±2		11kW
160×140×80cm	200×215×98cm			±1℃	±2		13kW
180×140×100cm	220×215×118cm			±1℃	±2		19kW
